Product Description

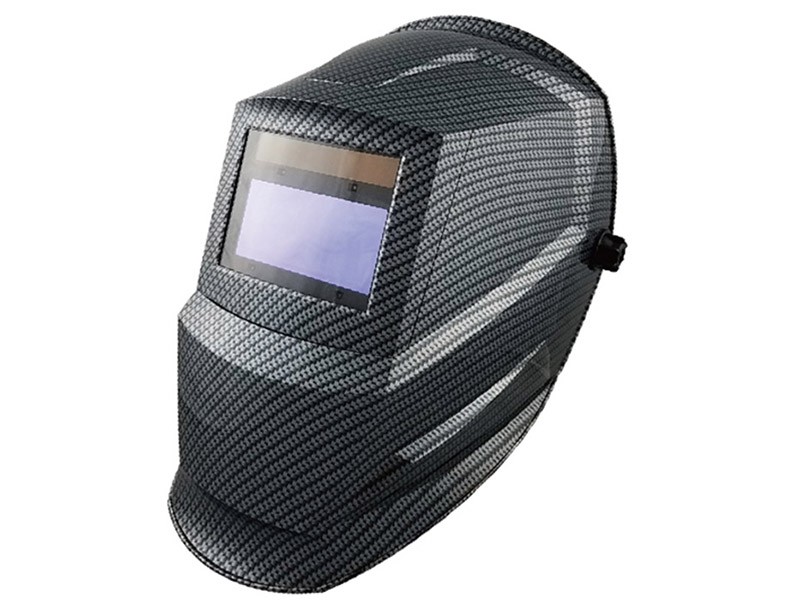

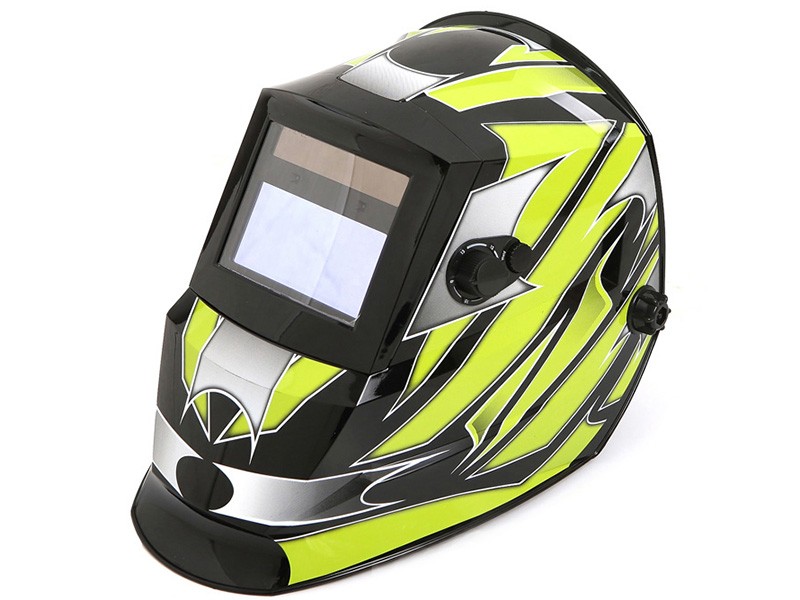

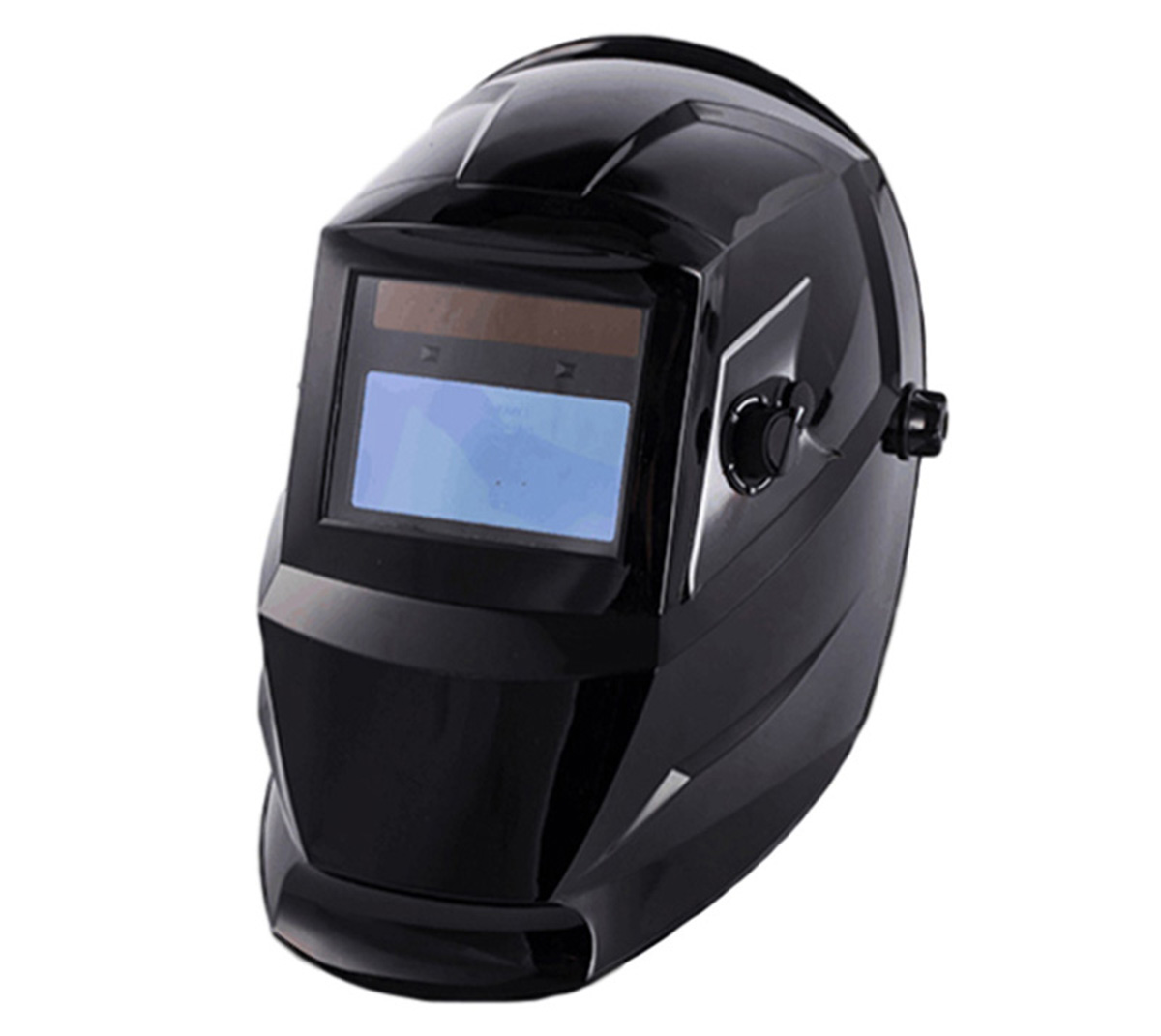

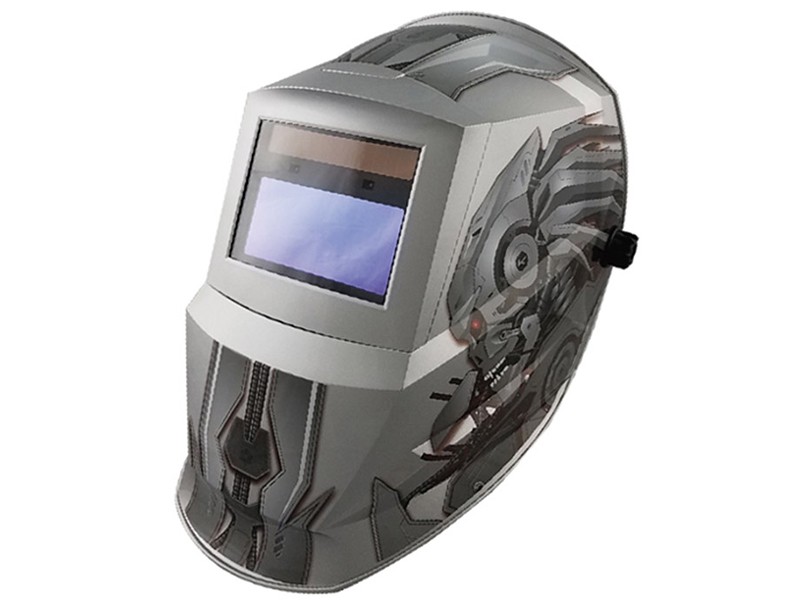

Lightweight, modern and fashion design with high impact resistance material;

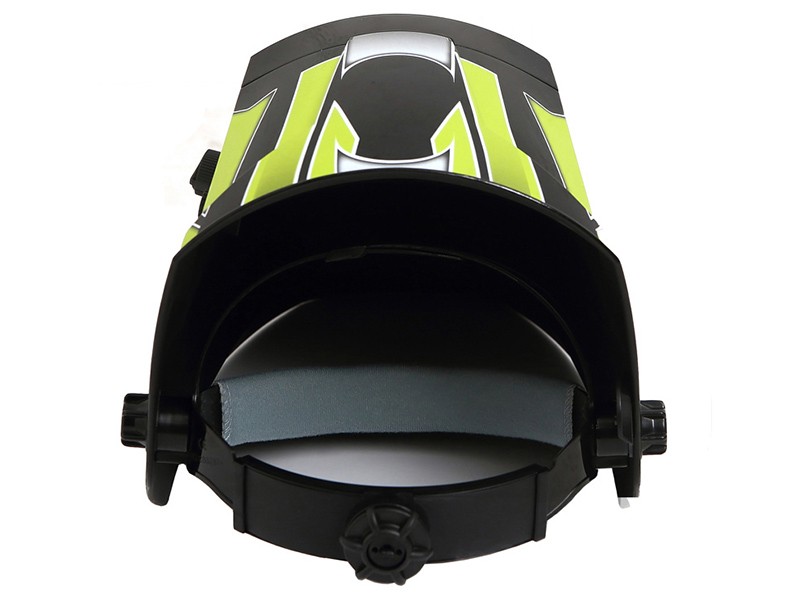

Ergonomic structure increases balance and comforts;
Outer protection lens PL-2002 110x90x1mm;
Fit for standard ADF dimension: 110x90(4.33’x3.54’) :
1122E, 1121, 1001F(I), 1001F, 1006, 1007, 1009, 1001F(G), 1010, 1010(I), 1011, 1011(I), 1021, 1021(D)
Product Parameters
Filter Model | 1122E |
Filter dimension | 110x90(4.33"x3.54") |
View size | 100x60mm(3.93"x2.63") |
CE Classification | 1/1/1/2 |
Sensors | 4 |
Light state | 4 |
Dark state | Variable shade 9-13 |
Power control | Fully automatic |

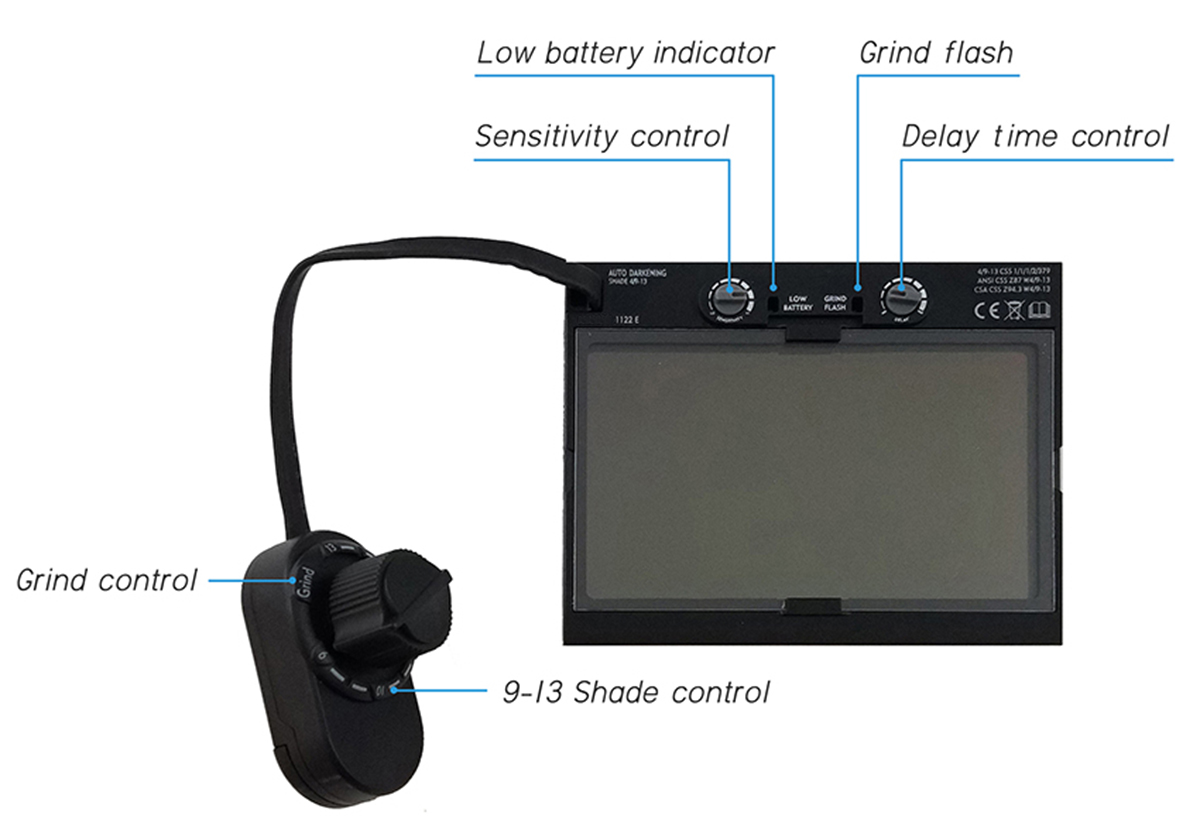

Shade control | External |
Switching time at 23℃ | 0.08ms |
Sensitivity Delay time control | Adjustable (Internal) |
Time from dark to light | 0.1-0.9s adjustable |
Grinding function(independent switch model) | Yes |
Grinding warning flash | Yes |
Low battery warning indicator | Yes |
Operation temperature | -10℃- 65℃ (14℉-149℉) |
Storing temperature | -20℃- 85℃ (-4℉-185℉) |
Power supply | Solar cell, replaceable battery |
Inner protection lens | PL-5001 |
Minimum TIG welding current | 5A |
Maximum TIG welding current | 350A |
