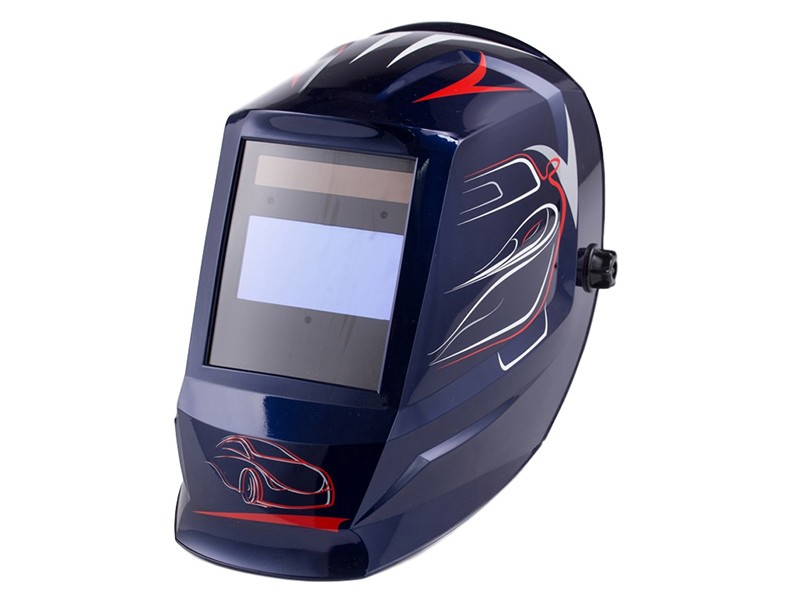

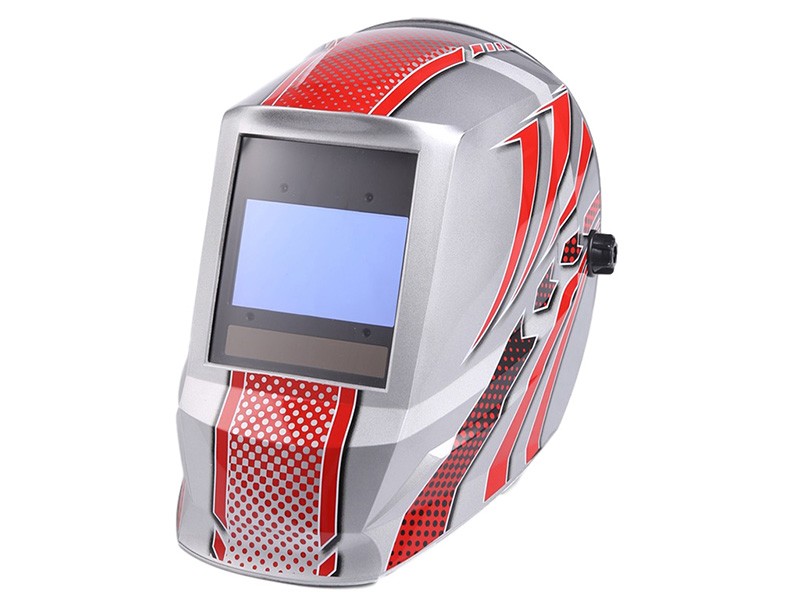

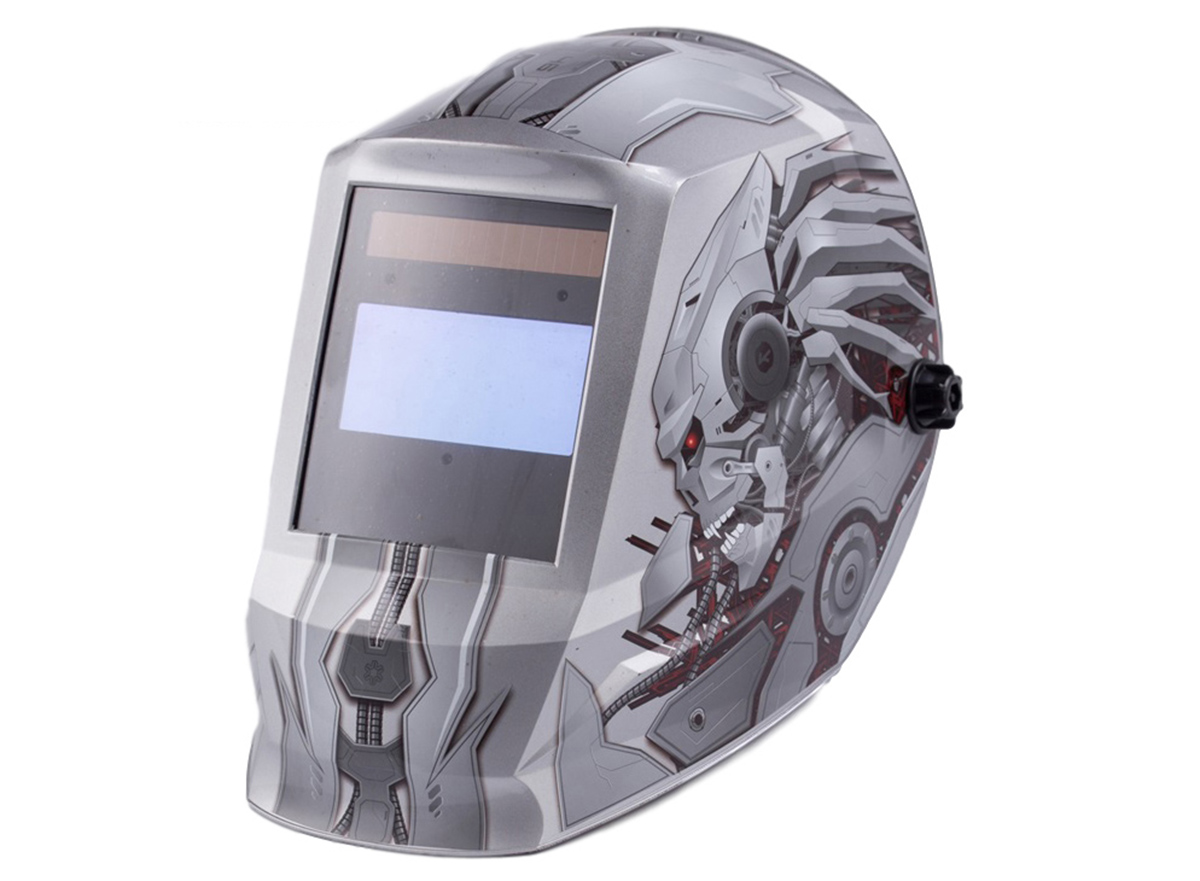

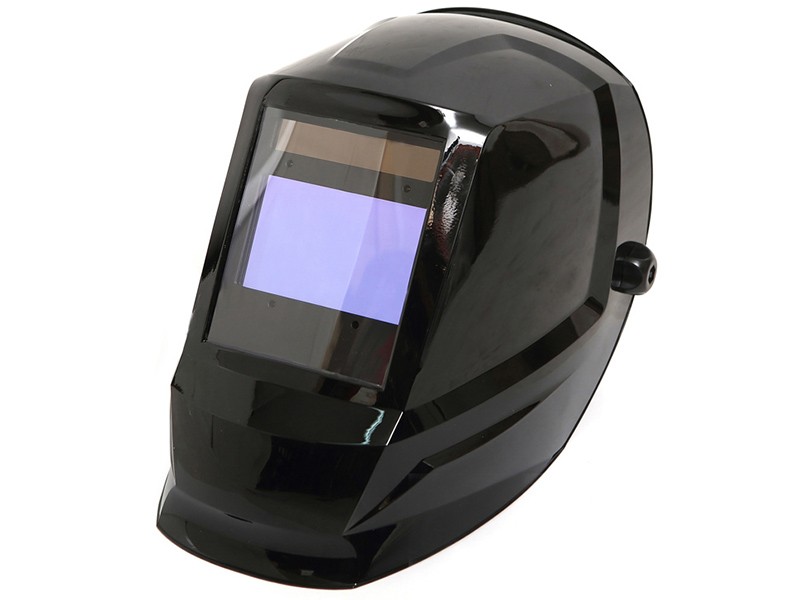

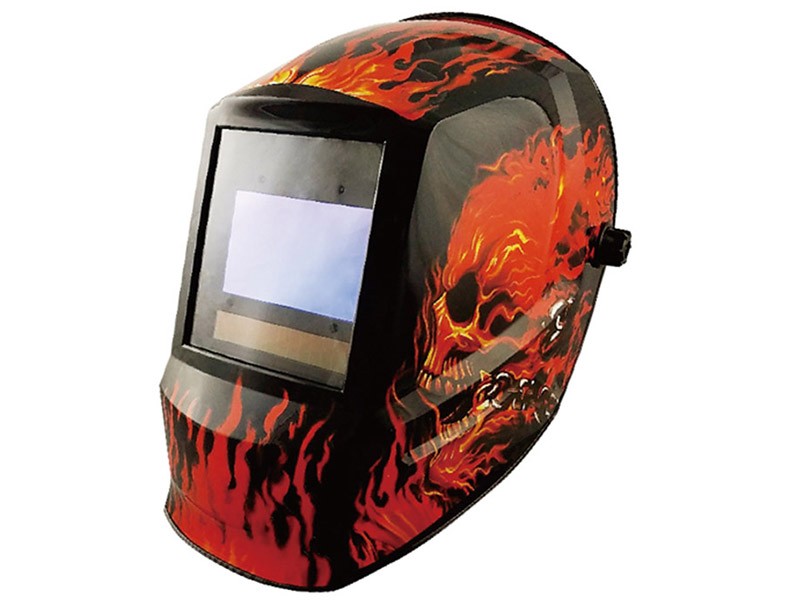

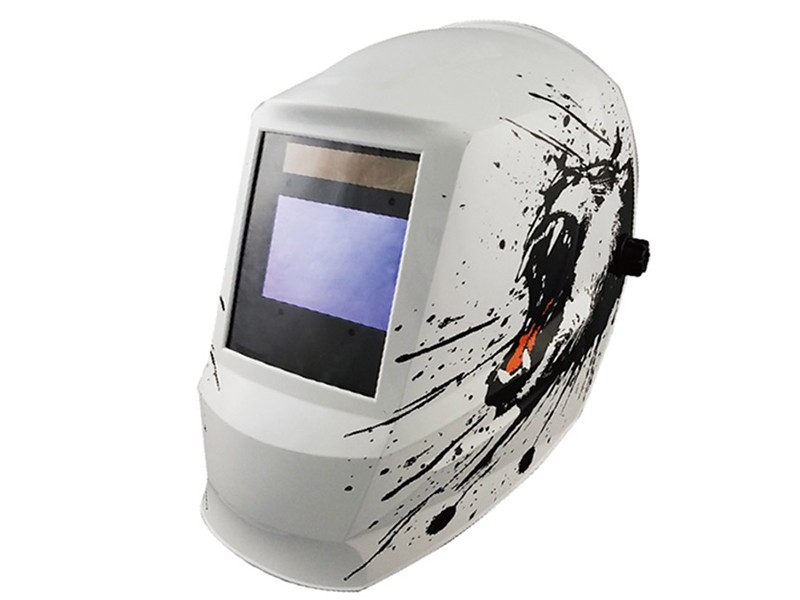

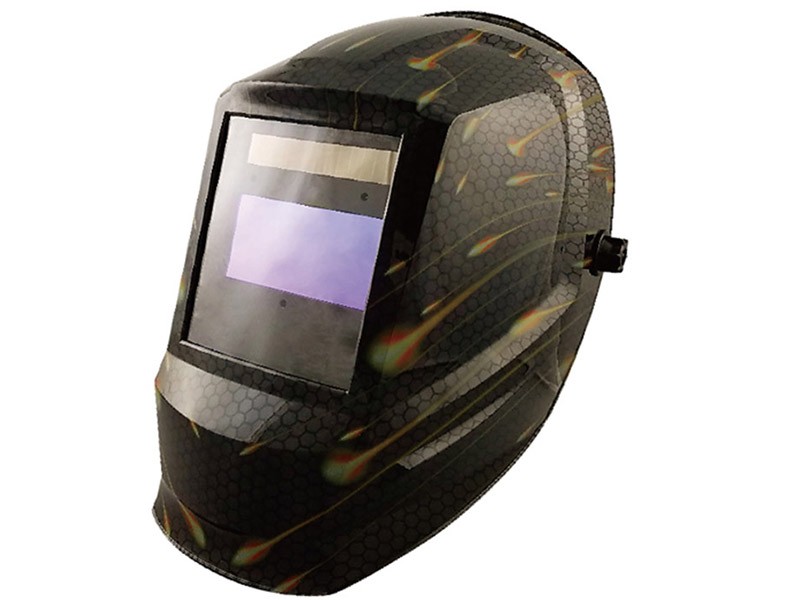

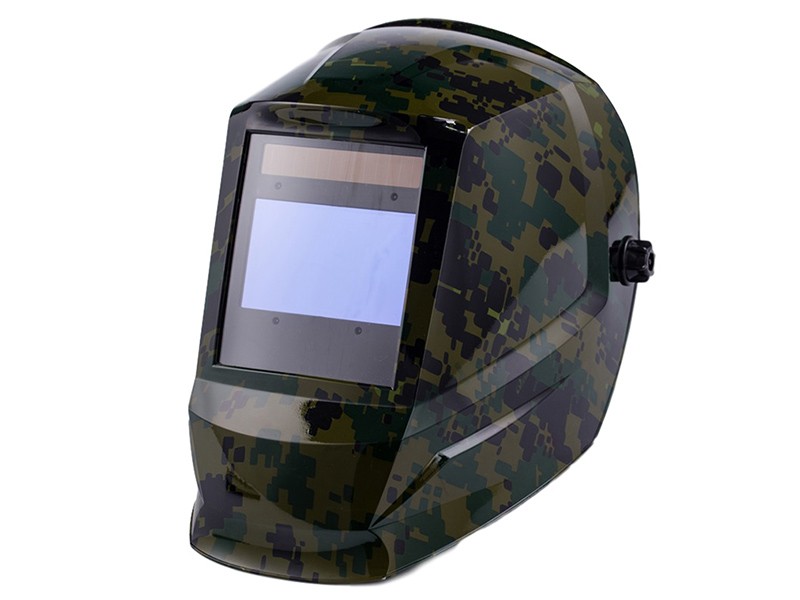

Product Description
Lightweight, modern and fashion design with high impact resistance material;
Ergonomic structure increases balance and comforts;
Outer protection lens PL-5002 114x133x1mm;
Fit for standard ADF dimension: 114x133(4.5’x5.25’) :
5122, 5122D, 5022D, 5022, 5001D, 5001, 5000
Product Parameters

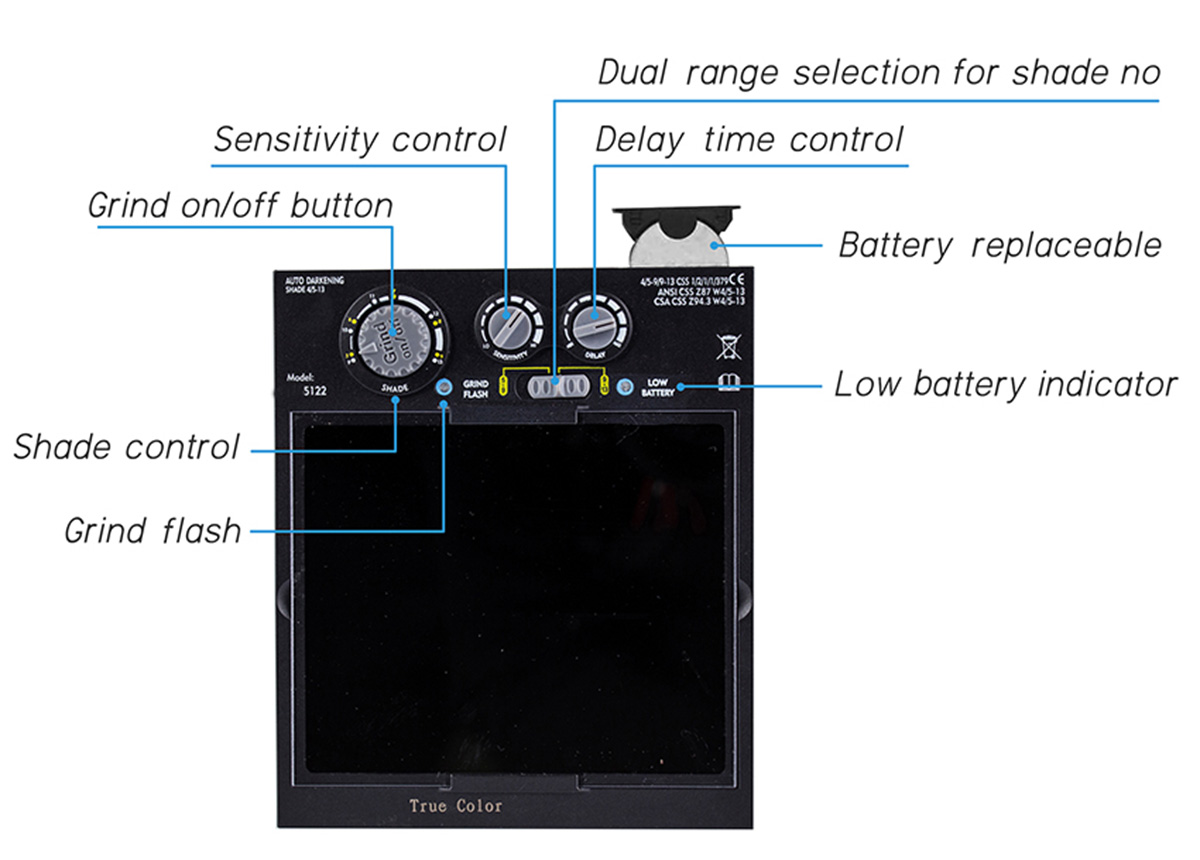

Filter Model | 5122 |
Filter dimension | 133x114x9.5mm4.5"x5.25") |
View size | 100x83.4mm(3.94"x3.28") |
CE Classification | 1/1/1/1 |
Sensors | 4 |
Light state | 4 |
Dark state | Variable shade 5-9/ 9-13 |
Power control | Fully automatic |
Shade control | Internal |
Switching time at 23℃ | 0.08ms |
Sensitivity Delay time control | Adjustable (Internal) |
Time from dark to light | 0.1-0.9s adjustable |
Grinding function(independent switch model) | Yes |
Grinding warning flash | Yes |
Low battery warning indicator | Yes |
Operation temperature | -10℃- 65℃ (14℉-149℉) |
Storing temperature | -20℃- 85℃ (-4℉-185℉) |
Power supply | Solar cell, replaceable battery |
Inner protection lens | PL-5003 |
Minimum TIG welding current | 3A |
Maximum TIG welding current | 350A |
